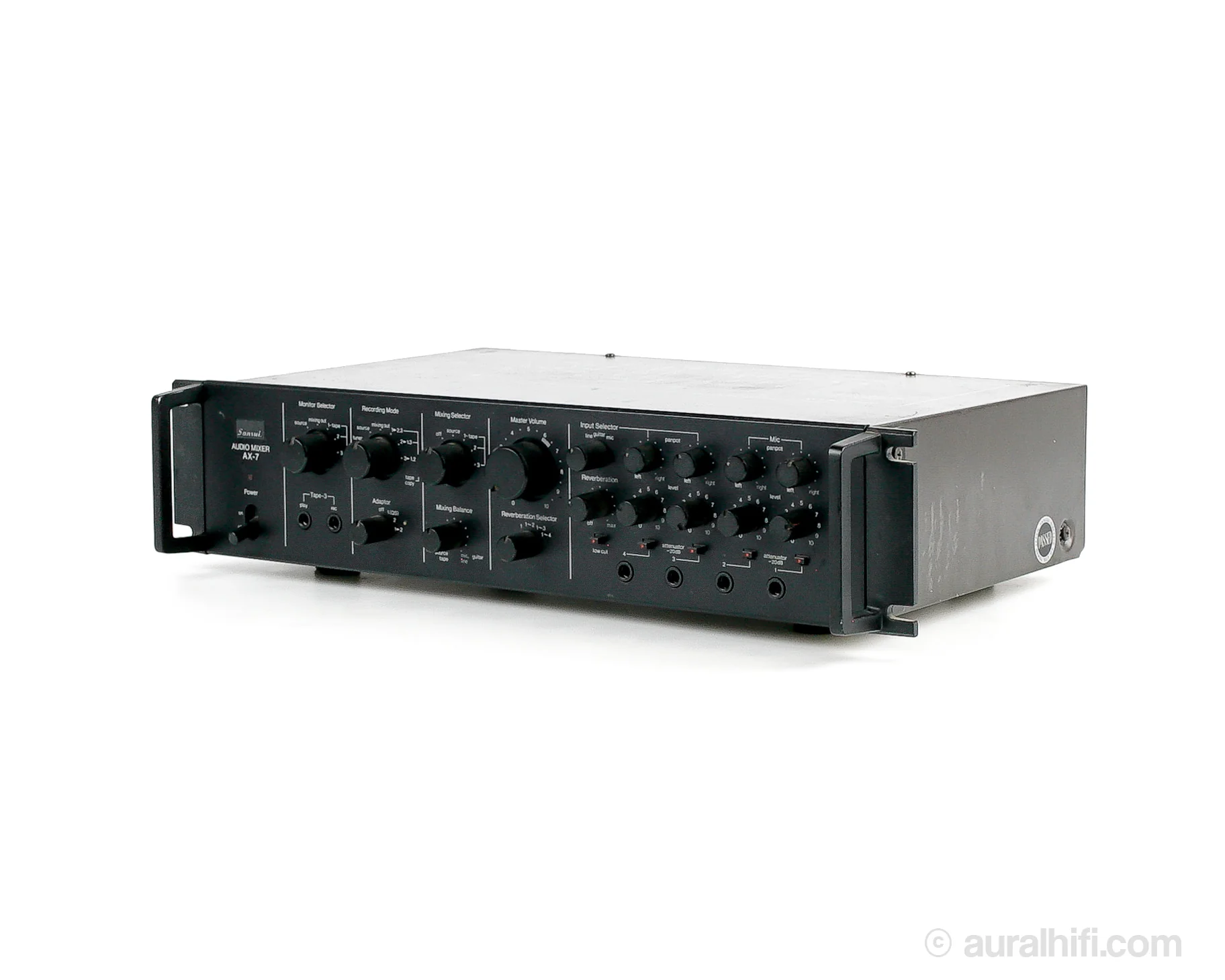

Vintage Sansui AX-7 // Audio Mixer / Professionally Serviced

With the Sansui AX-7, you can create professional quality recordings at home, using your existing HiFi equipment. Mix up to 4 live or recorded sources, then remix to as many as 3 tape decks. Tip top shape.

RESTORATIONS

• Full 30-point service check
• Cleaned controls, switches, and chassis


SPECS

Type   Two-channel audio mixer

Frequency response   20Hz to 20kHz

Total harmonic distortion   0.1%

Phono stage   included

Input sensitivity   1mV (mic), 150mV (line)

Signal to noise ratio   57dB (mic), 64dB (line)

Output   1000mV (line), 1V (Pre out), 5V (Pre out Max)

Dimensions   19"W x 4.33"H x 11.77"D

Weight   11.7 lbs.

LINER NOTES

Inputs include 4 microphones, 2 electric guitars and phono (source from your own amplifier or receiver) plus 3 tape monitor circuits and built in reverberator for unlimited effects. Rack mounting hardware is included.
